| Place of Origin: | Chongqing, China |
| Brand Name: | Shuangyan |
| Certification: | ISO 9001, CE |
| Model Number: | HSZ2-K-1 |
| Minimum Order Quantity: | 100pcs |
|---|---|
| Packaging Details: | Common box, Color Box, Plywood box or Wooden Box |
| Delivery Time: | 15-30 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 20000 pcs per month |

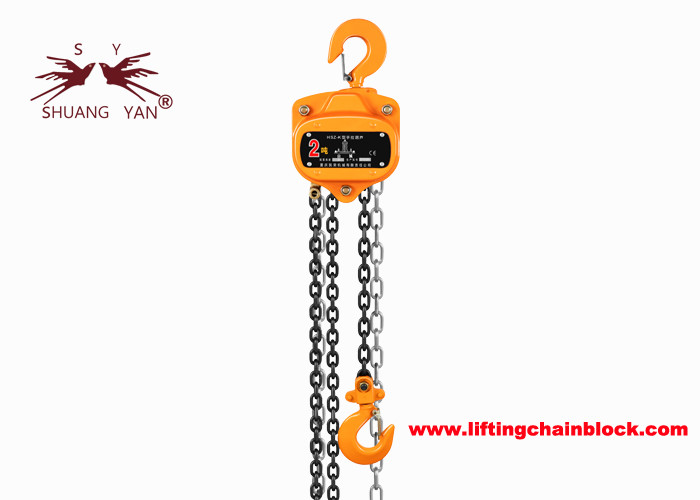

| Product: | Manual Chain Block HSZ-K Vital Type 2000kg Single Chain Fall | Company: | Chongqing Kinglong Machinery Co., LTD |
|---|---|---|---|
| Chain QTY: | Single Chain Fall | Hook Type: | 360 Rotate Safety Hook |
| Brand: | Shuangyan | Chain Length: | 3m Or Customized |
| Load Capacity: | 2000kg | Chain Size: | 6mm |
| High Light: | 2000kg Manual Chain Hoist Block,Vital Type Safety Manual Chain Block |
||
Shuangyan Manual Chain Block provides an ideal solution for heavy-duty industrial applications. It has a chain length of 3m or customized length, and the safety factor is 4:1. The Chain material is made of alloy steel, which enables the manual chain block to bear a load capacity of 2000kg. This manual chain pulley is designed to handle heavy objects in a safe and efficient way. It is a perfect combination of durability, stability, and safety. It is an ideal choice for anyone who needs a reliable and efficient manual chain pulley for heavy-duty applications.
| Model | HSZ2-K-1 | HSZ2-K-2 |
|---|---|---|
| Capacity | 2 Ton / 2000kg Single Chain Fall | 2 Ton / 2000kg Double Chain Fall |
| Chain Grade | G80 | G80 |
| Chain Size | 8mm | 6mm |
| Brand | Shuangyan or customized | Shuangyan or customized |
| Hook Type | 360 Rotate Safety Hook | 360 Rotate Safety Hook |
| Hook | Heat treatment | Heat treatment |
| Chain Length | 3m or Customized | 3m or customized |
| Break Force | 8 Ton | 8 Ton |
| Product Type | Manual Chain Trolley, Hand-operated Chain Puller, Manual Chain Trolley Supplier | Manual Chain Pulley, Hoisting tool, Hand Tool, Portable lifting tool |
Shuangyan HSZ-K Manual Chain Block is an ideal and reliable material handling tool designed to provide efficient, safe and controlled lifting of heavy loads. It is made of high-strength alloy steel and features a 360-degree rotatable safety hook for improved safety. This manual chain trolley can be used in multiple applications with a maximum load capacity of 2000kg.
The manual chain pulley is perfect for industrial and commercial applications including factory production, construction sites, warehouses, and shipyards. It provides superior resistance to corrosion and can be used in extreme temperatures and other harsh environments. Plus, it is easy to operate, with a hand chain for smooth and precise control of the load.
Shuangyan HSZ-K Manual Chain Block is the ideal material handling solution for heavy-duty lifting operations. It is built to last and provides reliable and efficient performance in the most demanding conditions. Made in China, it is a safe and cost-effective choice for all your material handling needs.
Manual Chain Blocks are packaged in durable cardboard boxes and secured with bubble wrap. All components are individually wrapped in bubble wrap to prevent damage during shipping. After packaging, Manual Chain Blocks are shipped via ground transportation.
Q1: What is Manual Chain Block?
A1: Manual Chain Block is a lifting equipment made by Shuangyan, with model number HSZ-K. It is made in Chongqing, China.
Q2: What is the capacity of Manual Chain Block?
A2: The capacity of Manual Chain Block varies from 0.5 ton to 50 ton.
Q3: What is the lifting speed of Manual Chain Block?
A3: The standard lifting speed of Manual Chain Block is by hand.
Q4: What is the minimum distance between the two hooks of Manual Chain Block?
A4: The minimum distance between the two hooks of Manual Chain Block is 0.41 meter.
| 360 Rotate Safety Hook |
