| Place of Origin: | China |
| Brand Name: | kl |
| Certification: | CE |
| Model Number: | HSZ-CA |
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | communicate |
| Packaging Details: | carton box; carton box+wooden box; carton box+pallet |
| Delivery Time: | Based on qty |
| Supply Ability: | 25000pcs/month |
| Material: | Q345 Steel | Load Chain: | Double Chain |
|---|---|---|---|
| Capacity: | 4400lb | Lifting Height: | As You Need |
| Standard: | CE GS | Color: | Yellow |
| High Light: | Corrosion Protection Hanging hoist machine,4400lb CA Manual Chain Block,Q345 Steel Manual Chain Block |
||
CA Model Corrosion Protection Hanging Hoist Machine
Description
HSZ-CA chain block is our newly supplied products on basis of HSZ series. Which possesses good performance in addition the advantages as model HSZ series chain block in equilateral triangle appearance, looking more special and beautiful, protects its body seriously with power of anti-collided, the grade of raw material of those cased spare parts has been increased to use longer, which is advanced in design of bottom hook block for chain block of double chains to keep away from chain’s reversal, the usage of series HSZ-CA is safer
Parameters
SPECIFICATION
| Model |
HSZ-0.5 CA |
HSZ-1 CA |
HSZ-1.5 CA |
HSZ-2 CA |
HSZ-3 CA |
HSZ-5 CA |
HSZ-10 CA |
HSZ-20 CA |
|
| Capacity | Ton | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 10 | 20 |
| lift | mm | 2.5 | 2.5 | 2.5 | 2.5 | 3 | 3 | 3 | 3 |
| Test load | Ton | 0.625 | 1.25 | 1.87 | 2.50 | 3.75 | 6.25 | 12.5 | 25 |
| Min.Distance Between Hooks | mm | 280 | 300 | 380 | 392 | 515 | 640 | 730 | 1000 |
| Chain pull to lift full load | N | 170 | 340 | 390 | 340 | 390 | 420 | 450 | 450 |
| No. of load chain | 1 | 1 | 1 | 2 | 2 | 2 | 4 | 8 | |
| Diameter of load chain | mm | 6 | 6 | 8 | 6 | 8 | 10 | 10 | 10 |
| Net weight | kg | 9.5 | 10 | 15 | 14 | 24 | 36 | 68 | 150 |
| Gross weight | kg | 10 | 10.3 | 15.7 | 14.5 | 24.8 | 37.3 | 79 | 173 |
|
Packing measurement ( L X W X H) |
cm | 25*18*16 | 25*18*16 | 28*24*18 | 27*20*16 | 32*23*18 | 41*30*21 | 62*50*27 | 80*70*36 |
| Extra weight per meter of extra lift | kg | 1.7 | 1.7 | 2.3 | 2.5 | 3.7 | 5.3 | 9.7 | 19.4 |
Products

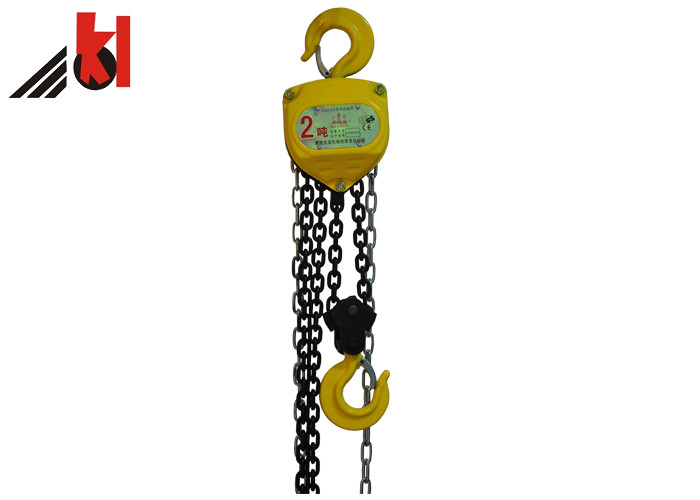

Manual chain hoist 2T*3M, yellow color, blacken loading chain, zinc hand chain
Customization normally avaliable on: color, chain color, chain length, lifting weight
Other Models
There are more other lifting chain block models, to satisfied different market and customer requirements.
Factory Introduction
Chongqing KingLong Machinery Co.,LTD founded in April 22th 1999. The former company name is Chongqing Chain Block Works. Untill now, it go through over 50 years in chain block area.
We are located in No.9 Hualong Ave, Jiulong Industrial Zone, Jiulongpo Dist, Chongqing, China. With over 100 emplyees, our factory has 27000 square meters including chain block assembly line, lever block & beam trolley assembly line, chains assembly line, different parts model workshops, parts treatment workshop, warehouse, office house ect.
Our factory get ISO9001 certification, GS and CE certifications. anually over 20,0000pcs chain blocks and one million meters loading chains.
