| Place of Origin: | China |
| Brand Name: | kl |
| Certification: | CE |
| Model Number: | HSZ-CA |
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | communicate |
| Packaging Details: | carton box; carton box+wooden box; carton box+pallet |
| Delivery Time: | see qty |
| Supply Ability: | 25000pcs/month |
| Material: | Q345B | Color: | Red |
|---|---|---|---|
| Capacity: | 2200lb | Lifting Height: | 9.8FT |
| Standard: | CE，G80 | Package: | Carton |
| High Light: | Manual Polished Load Chain Block,1 Ton*3M Manual Chain Block,2200 lb Manual Chain Block |
||
Factory Supply Hoist Chain Pulley Block Vital Type High Quality
Manual Hoist HSZ-CA 1000kg with standard full 3m lifting height
Description
HSZ-CA Series manual chain block is a simple and easy cooperated lifting tools, developed and manufactured by Chongqing KingLong Machinery Co.,Ltd. It can be widlyused in construction, mining, ship building, machine installing, goods lifting, power plants ect. In narrow and non-power situation it also can be easily operated.
Our HSZ-CA is made with high quaity materials, and every parts was exquisite. These good components collaborated very well, thus the product is more smoothly when lifting goods.
Parameters
We can supply from 0.5Ton to 30Ton standard. Other Lifting weight tonnage like 50 ton, 75 ton, 100 ton also can be customized.
Quickly standard lifting height is 1.5m, 3m, 6m, 9m,12m. For other custom-made meters which is no more than 200m , is easy for us too.
SPECIFICATION
| Model | HSZ-0.5 CA | HSZ-1 CA | HSZ-1.5 CA | HSZ-2 CA | HSZ-3 CA | HSZ-5 CA | HSZ-10 CA | HSZ-20 CA | |
| Capacity | Ton | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 10 | 20 |
| lift | mm | 2.5 | 2.5 | 2.5 | 2.5 | 3 | 3 | 3 | 3 |
| Test load | Ton | 0.625 | 1.25 | 1.87 | 2.50 | 3.75 | 6.25 | 12.5 | 25 |
| Min.Distance Between Hooks | mm | 280 | 300 | 380 | 392 | 515 | 640 | 730 | 1000 |
| Chain pull to lift full load | N | 170 | 340 | 390 | 340 | 390 | 420 | 450 | 450 |
| No. of load chain | 1 | 1 | 1 | 2 | 2 | 2 | 4 | 8 | |
| Diameter of load chain | mm | 6 | 6 | 8 | 6 | 8 | 10 | 10 | 10 |
| Net weight | kg | 9.5 | 10 | 15 | 14 | 24 | 36 | 68 | 150 |
| Gross weight | kg | 10 | 10.3 | 15.7 | 14.5 | 24.8 | 37.3 | 79 | 173 |
Packing measurement ( L X W X H) | cm | 25*18*16 | 25*18*16 | 28*24*18 | 27*20*16 | 32*23*18 | 41*30*21 | 62*50*27 | 80*70*36 |
| Extra weight per meter of extra lift | kg | 1.7 | 1.7 | 2.3 | 2.5 | 3.7 | 5.3 | 9.7 | 19.4 |
Products

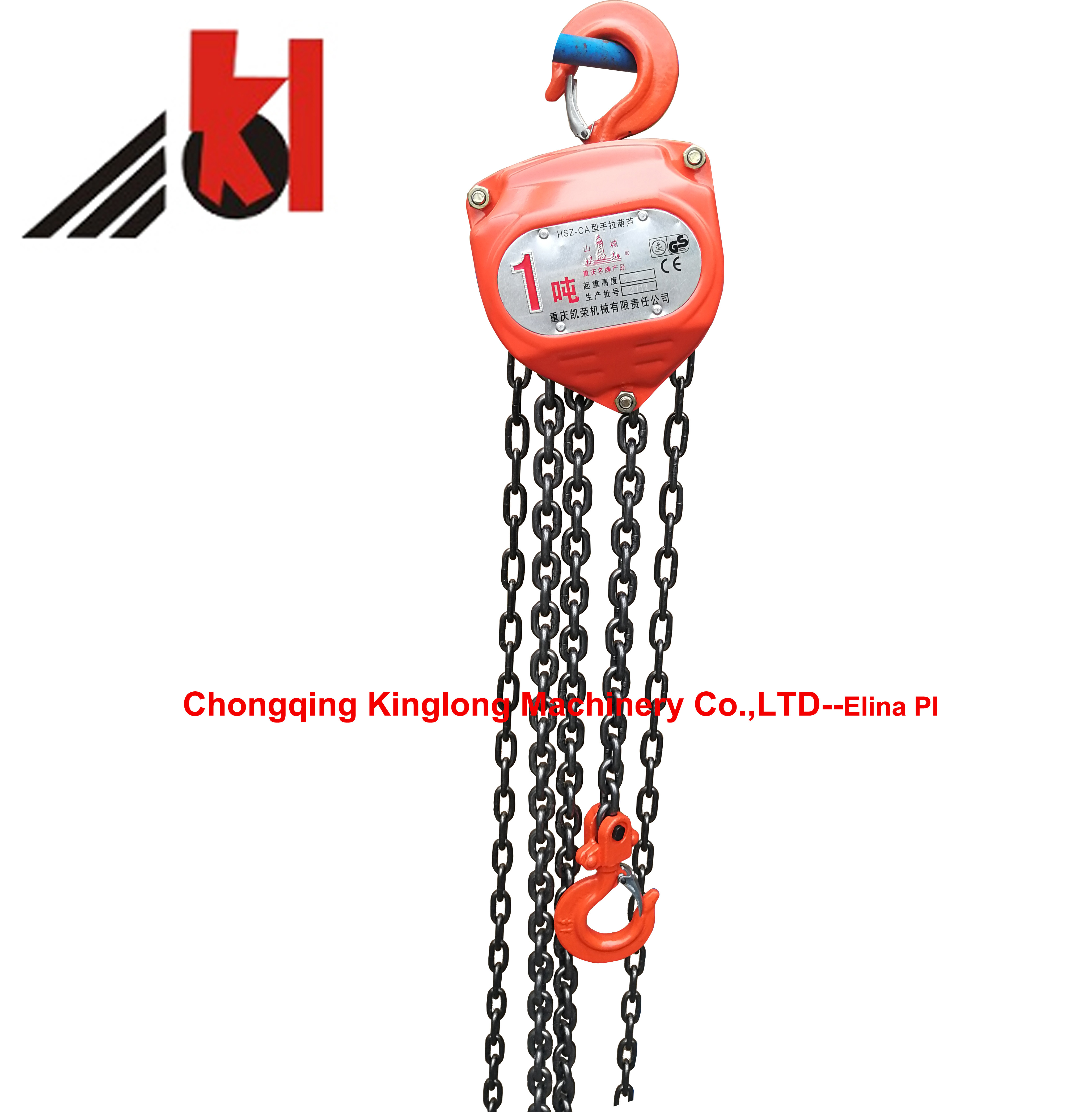

Chain Hoist HSZ-CA Model 1T*3M
We are a manufacturer, and can do customization for you.
Normally change like chain block head color, hook color, load chain color, hand chain zinc plated, hook model ect.
Other Models
There are more other lifting chain block models, to satisfied different market and customer requirements.
Assemble line photos
Factory Introduction
Chongqing KingLong Machinery Co.,LTD founded in April 22th 1999. The former company name is Chongqing Chain Block Works. Untill now, it go through over 50 years in chain block area.
We are located in No.9 Hualong Ave, Jiulong Industrial Zone, Jiulongpo Dist, Chongqing, China. With over 100 emplyees, our factory has 27000 square meters including chain block assembly line, lever block & beam trolley assembly line, chains assembly line, different parts model workshops, parts treatment workshop, warehouse, office house ect.
Our factory get ISO9001 certification, GS and CE certifications. anually over 20,0000pcs chain blocks and one million meters loading chains.
