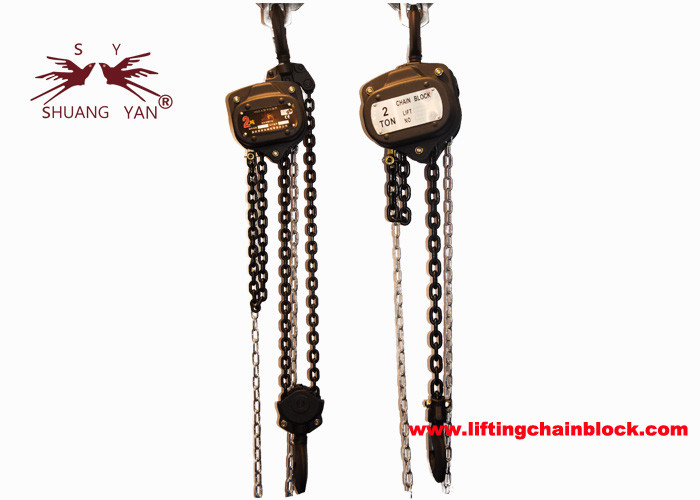

Integreted Bearing Manual Chain Block Lifting Device Hook Hand Vital Type

Integreted Bearing Manual Chain Block Lifting Device Hook Hand Vital Type

  • Integreted Bearing Manual Chain Block Lifting Device Hook Hand Vital Type
Integreted Bearing Manual Chain Block Lifting Device Hook Hand Vital Type
Product Details:
Place of Origin: China
Brand Name: Shuangyan
Certification: CE
Model Number: HSZ-CA
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs mixed models
Price: Negotiable
Packaging Details: Carton/Wooden case/ Plywood box/Pallet
Delivery Time: 15-30days
Payment Terms: T/T, Western Union, Alipay, L/C
Supply Ability: 20000pcs/month
Contact Now
Detailed Product Description
Product: Wholesale Heavy Goods Lifting Device Hand Chain Block 2 T*3 M HSZ-CA Mini. QTY: 100pcs Mixed Models
Business Type: Factory, Wholesale Capacity Available: 0.5t-50t
Color: Customised,Orange,red,Yellow,blue,Black,Green, Etc Usage: Heavy Goods Lifting
Sling Type: Chain, G80 Lifting Chain Lift Speed: Hand-operated
Warranty: Up To One Year Application: Construction Site Lifter,Lifting Goods,logistics,industry,workshop. Etc.
High Light:

Hook Manual Chain Block

,

Integreted Bearing Manual Chain Block

,

Vital Manual Chain Block

Wholesale Heavy Goods Lifting Device Hook-Type Hand Chain Block

Model: HSZ-K 2T Vital Type

Business Type: Factory, Wholesale, Exporter

Customers Range: Importers, Wholesalers, Distributers, Factories

Factory Price: High Quality, Low Prices





Company introduction



The former Chongqing Chain Block factory, with more than 55 years history of manual hoist production, is now Chongqing Kinglong Machinery Co.,LTD, located in Chongqing, China. The company occupies an area of 27,000 square meters, among which the workshop has 14,000 square meters, staying on the road side with a short distance of 3km from Chongqing East Railway Station, 10km from jiulong port, and both land and water transportation is convenient.



We have possessed perfect testing devices and the advanced equipments, including seven computer-controlled lines for high strength chains imported from Germany and Italy, and other automatic and semiautomatic digital controlled machines.



Our main items are various models of chain blocks, lever blocks, trolley and high strength chains as well as chain assembly. As one of the biggest professional manufacturers of china blocks in China, our present production for chain blocks has reached 200,000 sets and high strength chains 1,000,000 meters in a year.



Our own brands "SHAN CHENG" "Shuangyan" for chain block, lever block and trolley are very popular in domestic and overseas because of their high quality.



The principle of Chongqing Kinglong Machinery Co.,LTD is dedicated to providing the first-class products and satisfactory services after sales.



Integreted Bearing Manual Chain Block Lifting Device Hook Hand Vital Type 0



Product Details



Vital Type Chain Pulley Block Sizes in Details



Model   HSZ0.5-K HSZ1-K HSZ1.5-K HSZ2-K HSZ3-K HSZ5-K HSZ10-K HSZ15-K



HSZ20-K



Capacity Ton 0.5 1 1.5 2 3 5 10 15



20



Lift Height M 2.5 2.5 2.5 2.5 3 3 3 3



3



Proof Load Ton 0.63 1.25 2 2.5 4 6.3 12.5 20



25



Hand Chain Full Pulling Load N 260 323 356 390 370 410 436 460



440



Load Chain Fall   1 1 1 1 2 2 4 6



8



Diameter of Load Chain mm 5 6 7.1 8 7.1 9 10 10



10




Integreted Bearing Manual Chain Block Lifting Device Hook Hand Vital Type 1



Double rachet Pawls with gear protection cover for double safety guarantee



                            Integreted Bearing Manual Chain Block Lifting Device Hook Hand Vital Type 2

                                          Integreted Bearing Manual Chain Block Lifting Device Hook Hand Vital Type 3

Wooden box for Shuangyan Brand Chain Hoist for safe shipment:



Integreted Bearing Manual Chain Block Lifting Device Hook Hand Vital Type 4



Product Features



1. For 2 ton vital type of chain hoist, we have single load chain and double load chain for options.

2. Deepen the load chain groove to avoid the chain falling off the groove when using.

3. Hand chain that untouch with cover makes less friction and pull more smoothly.

4. Double rachet pawls guarantee double safety protection.

5. Protection cover for gear

6. Integreted bearing makes easier and less strength for hand chain pulling because of less frition.

7. The hooks adopt half structure with high safety performance.

8. Perfect testing machines for load chain and chain hoist head.

9. 100% of products to be tested during production and before delivery to ensure every product to be qualified.



Product Application



Hand chain hoist is usually used in the compact space and non-electricity place with its low cost and convenient carrying, such as factories, mines, farms, construction sites, wharves, docks and warehouses for installation of equipment and for loading and unloading goods.
