Elephant Manual Chain Block 0.75-30T Capacity For Building Construction

Elephant Manual Chain Block 0.75-30T Capacity For Building Construction

  • Elephant Manual Chain Block 0.75-30T Capacity For Building Construction
  • Elephant Manual Chain Block 0.75-30T Capacity For Building Construction
Elephant Manual Chain Block 0.75-30T Capacity For Building Construction
Product Details:
Place of Origin: Chongqing, China (Mainland)
Brand Name: Shuangyan/Double Swallow
Certification: CE GS ISO
Model Number: HSZ-CB
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs mixed models
Price: Negotiable
Packaging Details: Polybag, Carton Box and Pallet
Delivery Time: 15-30 days
Payment Terms: L/C, T/T, Western Union, D/P
Supply Ability: 20000 Set/Sets per Month
Contact Now
Detailed Product Description
Condition: New Usage: Construction Hoist, Workshop, Mining, Farming, Wharf, Dock, Warehouse
Sling Type: Lifting Chain G80 Maximum Lifting Weight: 1 Ton
Maximum Lifting Height: 3 Meter Lift Speed: Manual/Hand
Color: Orange, Blue, Green, Yellow, Red, Etc Function: Lifting And Lowering Load, Material Handling Tool
Business Type: Manufacturer History: >40 Years
Key Words: Manual Chain Hoist
High Light:

hand chain block

,

chain hoist lift

Product Description

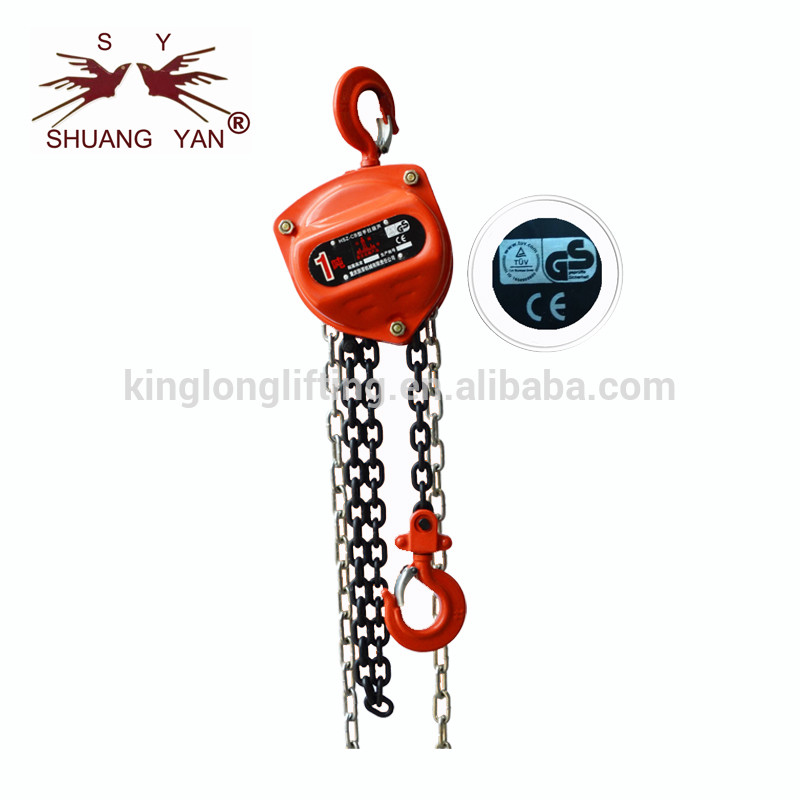

The HSC series Manual Chain Hoist is a portable lifting device easily operated by hand chain, possess good features as HSC series chain blocks in equilateral triangle appearance. Five features in design and in service are inherent in HSC series chain block:

1. Thicker in shield of gear and impact force improved

2. Added cover of chains to make load chain gearing well with chain sprocket

3. Using circle hemming in hand chain cover, avoid from hand chains blocked and noise reduction if hand chain slanted or horizontal lifting.

4. High effciency, easy handling, and light weight

5. Hook holder using over-all structure and high safety performance.



Detailed Parameters

capacity 0.5T 1T 1.5T 2T 3T 5T 10T 15T 20T
Lifting Hight 2.5 2.5 2.5 2.5 3 3 3 3 3
No. of load chain 1 1 1 1 2 2 4 6 8
Diameter of load chain 5 6 7.1 8 7.1 9 10 10 10

Packing & Delivery



Net Weight (kg) 7.5 10.2 15 16 21.5 36 70 117 162
Packing Material polybag, carton box or wooden box, in pallet



Factory Introduction



The former Chongqing Chain Block factory, with more than 40 years history of manual hoist production, is now Chongqing Kinglong Machinery Co.,LTD, located in Chongqing, China. The company occupies an area of 27,000 square meters, among which the workshop has 14,000 square meters, staying on the road side with a distance of 3km from Chongqing East Railway Station, 10km from jiulong port, and both land and water transportation is convenient.



With experiences on producing manual hoists for more than 40 years, we have possessed perfect testing devices and the advanced equipments, including seven computer-controlled lines for high strength chains imported from Germany and Italy, and other automatic and semiautomatic digital controlled machines. Our main items are various models of chain blocks, lever blocks, trolley and high strength chains as well as chain assembly. As one of the biggest professional manufacturers of china blocks in China, our present production for chain blocks has reached 200,000 sets and high strength chains 1,000,000 meters in a year.

Our own brands "SHAN CHENG" "Shuangyan" for chain block, lever block and trolley are very popular in domestic and overseas because of their high quality.
