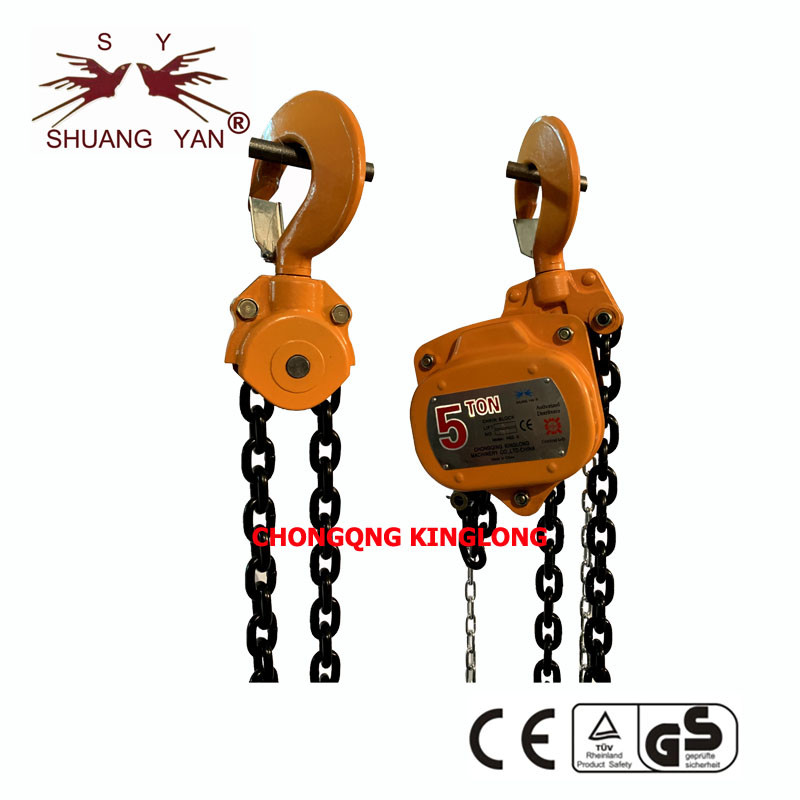

Double Ratchet Pawls 5T Non Asbestos Lifting Chain Block

Double Ratchet Pawls 5T Non Asbestos Lifting Chain Block

  • Double Ratchet Pawls 5T Non Asbestos Lifting Chain Block
Double Ratchet Pawls 5T Non Asbestos Lifting Chain Block
Product Details:
Place of Origin: P.R.C.
Brand Name: Shuangyan
Certification: CE GS ISO
Model Number: HSZ10K
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs mixed models
Price: Negotiable
Packaging Details: Carton/Wooden case/ Plywood box/Pallet
Delivery Time: 15-30days
Payment Terms: T/T, Western Union, Alipay, L/C
Supply Ability: 20000pcs/month
Contact Now
Detailed Product Description
Product Name: 5T Vital Type Non-asbesto Hand Chain Block Hoist HSZK Price: Factory Price
Eco-friendly Spare: Non-asbesto Friction Plate Double Safety: Double Ratchet Pawls
Hooks: Forged, Quenched And Tempered Proof Load: 7.5 Ton
G80 Chain Material: 20MN2 Lifting Height: 3-12 Meters Or Customized
Application: Hoist For Construction, Mining, Warehouse, Etc
High Light:

Non Asbestos Lifting Chain Block

,

Double Ratchet Pawls Lifting Chain Block

,

7.5T Load Lifting Chain Block

5T Vital Type Non-asbesto Eco-friendly Hand Chain Block Hoist HSZ-K

Model: HSZ-K 5 Ton ​



Chain Hoist Briefing



5T Vital Type Non-asbesto Eco-friendly Hand Chain Block Hoist HSZ-K, with chain track cover and guide wheel, is high quality elephant model lifting chain equipment for high-end international lifting market, with excellent inner structure and exquisite outline, giving users the best experience.



5T Vital Type Non-asbesto Eco-friendly Hand Chain Block Hoist HSZ-K, is originally produced by Chongqing Kinglong Machinery Co., LTD for 55 years, with mature craftsmanship, imported chain making machines, skilled workers, stable raw materials sources, perfect quality control, guarantee high quality and delivery in time.



Vital Type Chain Pulley Block Sizes in Details

Model   HSZ0.5-K HSZ1-K HSZ1.5-K HSZ2-K HSZ3-K HSZ5-K HSZ10-K HSZ15-K HSZ20-K
Capacity Ton 0.5 1 1.5 2 3 5 10 15 20
Lift Height M 2.5 2.5 2.5 2.5 3 3 3 3 3
Proof Load Ton 0.63 1.25 2 2.5 4 6.3 12.5 20 25
Hand Chain Full Pulling Load N 260 323 356 390 370 410 436 460 440
Load Chain Fall   1 1 1 1 2 2 4 6 8
Diameter of Load Chain mm 5 6 7.1 8 7.1 9 10 10 10


5T Vital Type Non-asbesto Eco-friendly Hand Chain Block Hoist HSZ-K Features

1.  Thicker gear shield cover Double Ratchet Pawls 5T Non Asbestos Lifting Chain Block 0
2. Double Ratchet Pawls Double Ratchet Pawls 5T Non Asbestos Lifting Chain Block 1
3 Exquisite Painted Cover Double Ratchet Pawls 5T Non Asbestos Lifting Chain Block 2
4 Forged, quenched&tempered hook Double Ratchet Pawls 5T Non Asbestos Lifting Chain Block 3



Operation Instruction for 5T Vital Type Non-asbesto Eco-friendly Hand Chain Block Hoist HSZ-K



Before using, the product should be checked carefully on following spare parts, such as hooks, load chain, brake device and lubrication of the block. Only everything is under nomal condition, the chain pulley block can be put into operation.



Six rules should be followed for safe operation:

1. Don't lift any load exceeding rated capacity of the chain block.

2. Don't pull the goods or load up too high or too low.

3. Don't drag aslant the load.

4. To avoid any accident, working or passing under a lifting load is banned.

5. Don't use the chain block when the load chain is kinking.

6. In case of the hand chain failing to move, don't pull it voilently, but stop using it immidiately, then to check and maintain.



Our Main Products



Hand chain hoist, 0.5 Ton - 50 Ton available

Lever chain hoist, 0.25 Ton - 9 Ton available

Electric chain hoist, 0.5 Ton - 50 Ton available

Plain Trolley 0.5 Ton - 10 Ton Available

Geared Trolley 0.5 Ton - 10 Ton Available

lifting chains, G80/G100 as request, 4mm,6mm,7.1mm,8mm,9mm,10mm, 11mm, etc

Chain sling with black coating, galvanized, and golden color



5T Vital Type Non-asbesto Eco-friendly Hand Chain Block Hoist HSZ-K Pictures

Double Ratchet Pawls 5T Non Asbestos Lifting Chain Block 4



Double Ratchet Pawls 5T Non Asbestos Lifting Chain Block 5

Double Ratchet Pawls 5T Non Asbestos Lifting Chain Block 6

Double Ratchet Pawls 5T Non Asbestos Lifting Chain Block 7



Double Ratchet Pawls 5T Non Asbestos Lifting Chain Block 8





Factory  Pictures
Double Ratchet Pawls 5T Non Asbestos Lifting Chain Block 9 Double Ratchet Pawls 5T Non Asbestos Lifting Chain Block 10
Double Ratchet Pawls 5T Non Asbestos Lifting Chain Block 11 Double Ratchet Pawls 5T Non Asbestos Lifting Chain Block 12
Double Ratchet Pawls 5T Non Asbestos Lifting Chain Block 13 Double Ratchet Pawls 5T Non Asbestos Lifting Chain Block 14
Double Ratchet Pawls 5T Non Asbestos Lifting Chain Block 15 Double Ratchet Pawls 5T Non Asbestos Lifting Chain Block 16



Factory Brief Introduction



We, Chongqing Kinglong Machinery Co., LTD, dedicated at manufacturing material handling tool and lifting tool such as hand chain hoist, lever chain hoist, load chain and monorail trolley for 55 years with advanced mature techniques and rich experience.



If you are interested in any product, please email to us. We will handle with your inquiry as early as possible!
