Steel 2t Lifting Rigging Triangle Manual Chain Tackle

Yellow Easy Rigging Triangle Manual Chain Tackle





Products Drawing & Specification:







Model			HSZ0.5-K		HSZ1-K	HSZ1.5-K	HSZ2-K	HSZ3-K	HSZ5-K	HSZ10-K	HSZ15-K	HSZ20-K
Capacity	Ton		0.5		1	1.5	2	3	5	10	15	20
Lift	m		2.5		2.5	2.5	2.5	3	3	3	3	3
Test Load	Ton		0.63		1.25	2	2.50	4	6.3	12.5	20	25
Chain pull to lift full load	N		260		323	356	390	370	410	436	460	440
No. of load chain			1		1	1	1	2	2	4	6	8
Diameter of load chain	mm		5		6	7.1	8	7.1	9	10	10	10
Dimensions	mm	A		138	156	184	198	230	285	383	435	680
		B		128	144	153.5	162.5	153.5	184	184	184	229
		C		310	370	400	410	530	670	750	1000	1040
		D		29	30	33	33	47	50	62	80	80
Net weight	kg		7.5		10.2	15	16	21.5	36	70	117	162
Extra weight per meter of extra lift	kg		1.4		1.7	1.9	2.2	3	4.4	9.4	13.5	18.6





Production Description:

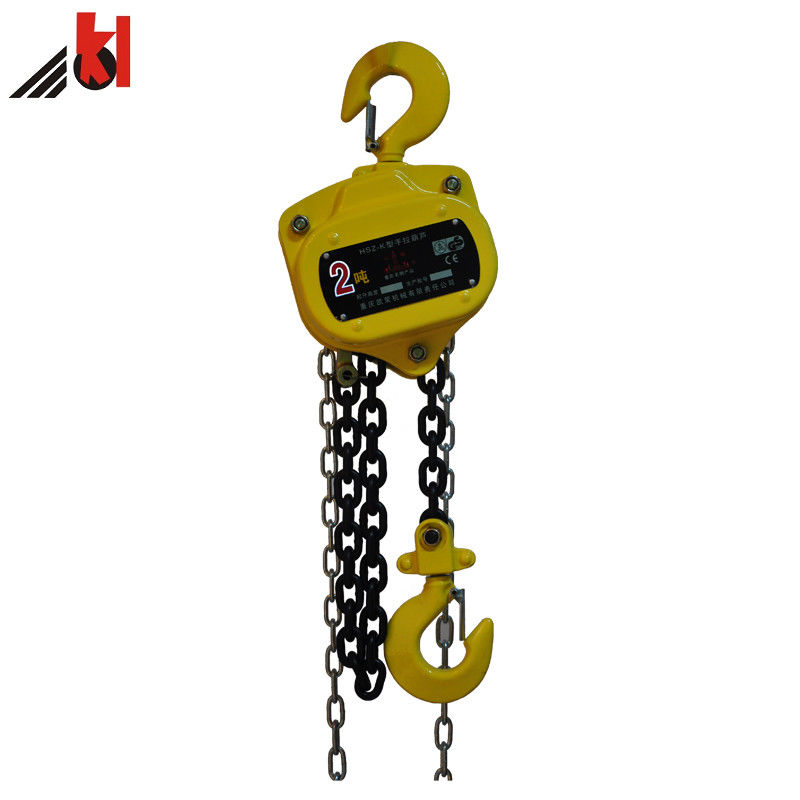

•  2 Ton*3 M
•  Color Yellow (orange is one of the most popular color)
•  G80 Load chain, blacken
•  Galvanized hand chain
•  Forged hook

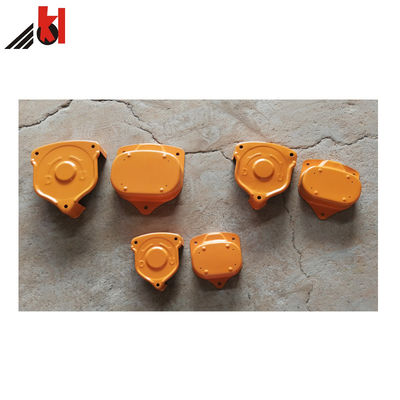

•  Accept parts supply (most parts are designed and made by ourselves)





HSZ-K Model Advantages



1. The HSZ-K Series Chain Block is our newest development product, and sales are very hot.
2. It is designed on the most advanced principles of Japan
3. The chain blocks have been improved the inner structure and incrased the material grade of some important parts to make them for longer life and for more safe in operation.
4. Also these spare parts is easy to disassemble, it brings more and more easy in maintenance and convenient in repairment.
5. Besides it is with good performance, more attractive in appearane. It is the best choice for using hand tools.

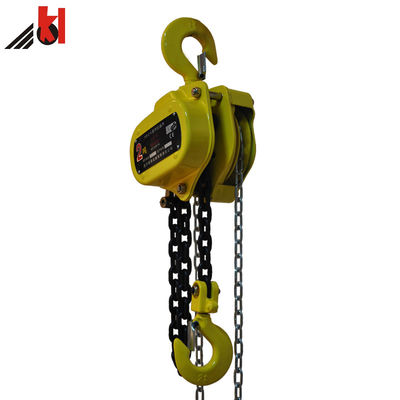

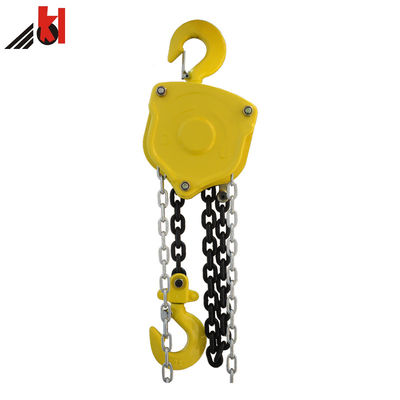

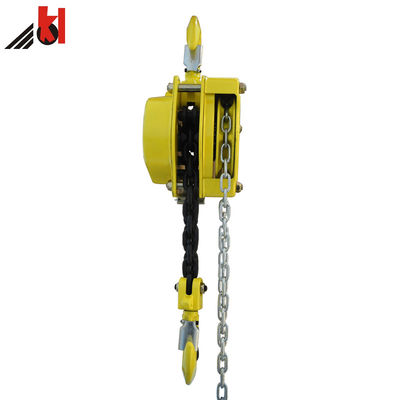

Proucts Pictures:







Products Package:



Carton box normally

Other package selection---Plywood box, wooden box, pallet, others customization







RFQ:



1. Are you a factory or a trading company?

    We are a factory. We specialize in producing chain block, lever block, beam trolley, loading chain, hand chain, and their parts.



2. How about your quality control before shipment?
    All products will been strictly checked and tested before packing and shipping.



3. How long is the warranty ?
    The whole machine of all our products have 12 months warranty.



4. Is your product customized?
    Yes, all our products are customized as customers’detailed requirements!



5. What about the leadtime for mass products?
    Generally about 30 days, but depends on the quantity.



6. What’ the detailed information should be provided when sending inquiry?
    Material of the lifting chain,Length of lifting chain,Maximum lifting weight of the hoist,the working environment

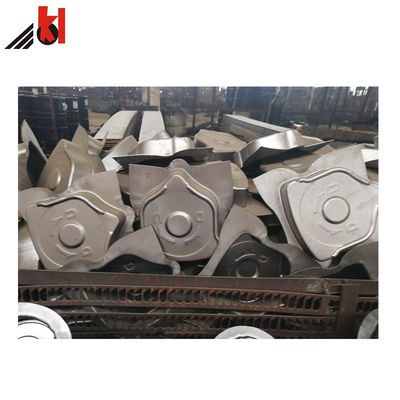

HSZ-K Series (0.5 T/ 1 T/ 2 T/ 5 T/ 10 T)  Randon Workshop Photoes:



0.5 Ton



1 Ton



2 Ton



5 Ton



10 Ton





Factory Information:



The former Chongqing Chain Block Works with more than 50 years history of manual hoist production, is located in No.9 Hualong Ave,Jiulong Industrial Zone,Jiulongpo Dist Chongqing and covers an area of 27000 square meters,among Which the productive construction area is 14000 square meters, The factory stays on the road side with a distance of 3 km from Chongqing East Railway Station,10km from Jiulong port, the land and water transportation are convenient.
With experiences in producing manual hoists for more than 40 years, we have possessed the perfect testing devices and the advanced equipments, including seven computer-controlled lines for high strength chains imported from Germany and Italy, and other automatic and semiautomatic digital controlled machines ,Our main items are various models of chain blocks, lever blocks, trolley and high strength chains as well as chain assembly. As one of biggest professional manufacturers of chain blocks in China, our present production for chain blocks has reached 200,000pcs and high strength chains 1,000,000 meters in a year.
