Home ProductsLifting Pulley Block

Industry Use Outdoor 3m Manual Chain Block Hoist 5 Ton

Industry Use Outdoor 3m Manual Chain Block Hoist 5 Ton

  • Industry Use Outdoor 3m Manual Chain Block Hoist 5 Ton
  • Industry Use Outdoor 3m Manual Chain Block Hoist 5 Ton
Industry Use Outdoor 3m Manual Chain Block Hoist 5 Ton
Product Details:
Place of Origin: Chongqing
Brand Name: KingLong
Certification: ISO 9001, GS, CE
Model Number: HSZ
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs mixed models
Price: US$78 - US$83
Packaging Details: carton box or plywood box
Delivery Time: 20 days
Supply Ability: 20000 pieces/ month
Contact Now
Detailed Product Description
Name: 5 Ton Application: Material Handling Lifting
Capacity: 3 Ton Lifting Height: 3 M
Color: Stainless Gray Material: Steel, Manganese, Chromium
Load Chain: Manganese Steel Chain Color: Polished
High Light:

Industry Use Chain Block Hoist

,

Manual Chain Block Hoist 5 Ton

,

3m Manual Chain Block Hoist

Industry Use Outdoor Stronger Manual Chain Hoist





Products Drawing and Specification:



Industry Use Outdoor 3m Manual Chain Block Hoist 5 Ton 0



Model   HSZ-0.5 HSZ-1 HSZ-1.5 HSZ-2 HSZ-3 HSZ-5 HSZ-7.5 HSZ-10 HSZ-20
Capacity Ton 0.5 1 1.5 2 3 5 7.5 10 20
Lift m 2.5 2.5 2.5 2.5 3 3 3 3 3
Test Load Ton 0.625 1.25 1.87 2.50 3.75 6.25 9.375 12.5 25

Min.Distance

Between Hooks

mm 280 300 360 380 470 600 650 730 1000
Chain pull to lift full load N 170 340 390 340 390 420 395 450 450
No. of load chain   1 1 1 2 2 2 3 4 8
Diameter of load chain mm 6 6 8 6 8 10 10 10 10
Dimensions mm A 142 142 178 142 178 210 336 358 580
B 126 126 142 126 142 165 165 165 195
C 24 28 32 34 38 48 57 64 82
D 142 142 178 142 178 210 210 210 210
Net weight kg 9.5 10 15 14 24 36 53 68 150
Gross weight kg 10 10.3 15.7 14.5 24.8 37.3 64 79 173
Packing measurement(LWH) cm 25*18*16 25*18*16 26*23*18 27*20*16 32*23*18 41*30*21 25*18*17 62*50*27 80*70*36
Extra weight per meter of extra lift kg 1.7 1.7 2.3 2.5 3.7 5.3 7.7 9.7 19.4





Production Description:



  •  5 ton * 3 m
  •  color gary
  •  grade 80 chain, diameter 10 mm, black color

Industry Use Outdoor 3m Manual Chain Block Hoist 5 Ton 1

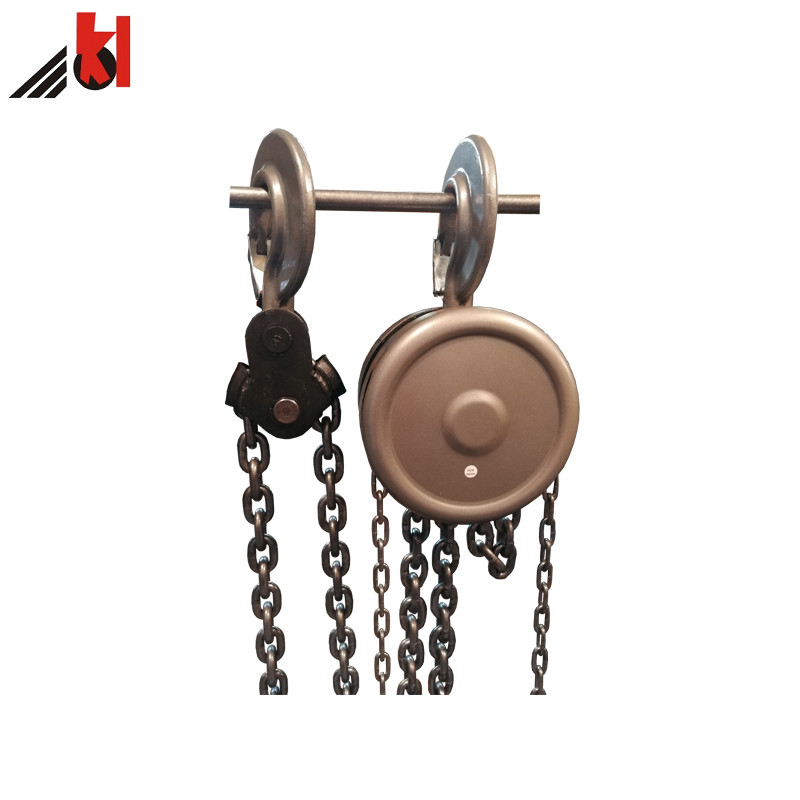

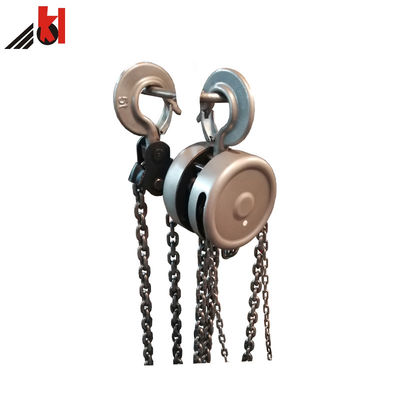

Producing Picture Showing:



Industry Use Outdoor 3m Manual Chain Block Hoist 5 Ton 2

Industry Use Outdoor 3m Manual Chain Block Hoist 5 Ton 3





Package Options:



  1.  carton box
  2.  plywood case
  3.  wooden case
  4.  pallet
  5.  per your requirements



Industry Use Outdoor 3m Manual Chain Block Hoist 5 Ton 4





Certification of GS and CE 2020



Industry Use Outdoor 3m Manual Chain Block Hoist 5 Ton 5





Company Information:



1. Over 50 years experience in chain block eara
2. Most parts of chain block are designed and produced by ourselves
3. 27000 square meters factory
4. chain block assembly line, chain assembly line, many machines and equipments
5. ISO/GS/CE quality assurance.
6. Customers stable, employees stable, Finance stable
7. Every item was tested before package and pre-quality test before loading provided
8. Accept customization on many aspects relates to products
9. Good reputation in China, especially in Chongqing, famouse domestic brand"shuangyan", "shancheng"



Industry Use Outdoor 3m Manual Chain Block Hoist 5 Ton 6

Industry Use Outdoor 3m Manual Chain Block Hoist 5 Ton 7

Industry Use Outdoor 3m Manual Chain Block Hoist 5 Ton 8

Industry Use Outdoor 3m Manual Chain Block Hoist 5 Ton 9

Industry Use Outdoor 3m Manual Chain Block Hoist 5 Ton 10

Industry Use Outdoor 3m Manual Chain Block Hoist 5 Ton 11



Industry Use Outdoor 3m Manual Chain Block Hoist 5 Ton 12
