|Place of Origin:||P.R.C.|
|Minimum Order Quantity:||100pcs|
|Packaging Details:||Carton/Wooden case/ Plywood box/Pallet|
|Payment Terms:||T/T, Western Union, Alipay, L/C|
|Product Name:||Heavy Duty Lifting Tool Elephant Type Manual Chain Pulley Block Hoist 5T HSC-5||Hooks:||Forged&heat Treatment|
|Feature 1:||Heavy Duty||Feature 2:||Long Lifespan|
|Proof Load Test:||7.5 Ton||G80 Chain Material:||20MN2|
|Lifting Height:||3-12 Meters Or Others||Application:||Hoist For Construction, Mining, Warehouse, Etc|
Heavy Duty manual chain block hoist,
Manual Chain Pulley Block Hoist,
5T manual chain block hoist

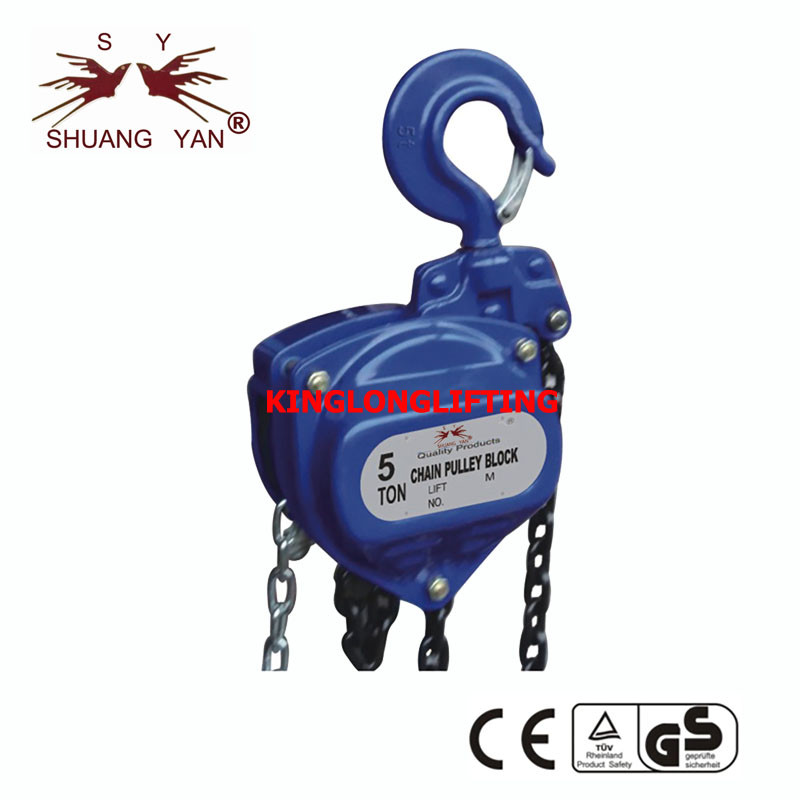

Heavy Duty Lifting Tool Elephant Type Manual Chain Pulley Block Hoist 5Ton
5 Ton HSZ-CB5 Chain Hoist Brief Introduction:
1. Product Advantages:
1. Factory Wholesale Low Prices
2. Thickened cover for gear system to enhance impact force.
3. Chain-track cover adopted to avoid dust and particles and to protect the compatibility between load chain and load chain sprocket.
4. Hand chain cover with inward curved edge
5. Easy to pull hand chain, high-efficient mechanical performance
6. Load chain, hooks and key spare parts quenched and tempered, high quality
7. Hook holder using over-all structure with high safety performance
Heavy Duty Lifting Tool Manual Chain Pulley Block Hoist 5T, with chain track cover and guide wheel, is high quality elephant model lifting chain equipment for high-end international lifting market, with excellent inner structure and exquisite outline, giving users the best experience.
Heavy Duty Lifting Tool Manual Chain Pulley Block Hoist 5T is originally manufactured by Chongqing Kinglong Machinery Co., LTD for 55 years, with mature craftsmanship, imported chain making machines, skilled workers, stable raw materials sources, perfect quality control, guarantee high quality and delivery in time.
2. Operation Instruction:
Before using, the product should be checked carefully on following spare parts, such as hooks, load chain, brake device and lubrication of the block. Only everything is under nomal condition, the chain pulley block can be put into operation.
Six rules should be followed for safe operation:
1. Don't lift any load exceeding rated capacity of the chain block.
2. Don't pull the goods or load up too high or too low.
3. Don't drag aslant the load.
4. To avoid any accident, working or passing under a lifting load is banned.
5. Don't use the chain block when the load chain is kinking.
6. In case of the hand chain failing to move, don't pull it voilently, but stop using it immidiately, then to check and maintain.
3. Parameters for Elephant Type Chain Pulley Block
|Min.Distance Between Hooks||mm||330||413||430||570||685||775|
|Hand Chain Full Pulling Load||N||340||390||340||390||420||450|
|Load Chain Fall||1||1||1||2||2||4|
|Diameter of Load Chain||mm||6||7.1||8||7.1||9||9|
|1.||Thicker gear shield cover|
|2.||Inner chain Track covers|
|3.||Hand chain cover with perfect rolled edge|
|4.||Double Ratchet Pawls and thickened covers|
|5||Exquisite Painted Cover|
4. Heavy Duty Lifting Tool Manual Chain Pulley Block Hoist 5T Pictures
Q1: Why do our customers trust on us?
A: Most of our customers have cooperated with us for at least from 10 to 25 years. Why have we cooperated for so long time? Of cause, because our customers trust on our products and services, and we give them best products, most favorable prices, and best services, and we always try our best to help them with what they want from China.
Q2: How do we control material quality and products quality?
A: Firstly, we have advanced equipment, such as 7 lines of computer-controlled automobile chain bending and welding machines and various kinds of test machines.
Secondly, we own experienced and skilled workers most of who have served in our factory since they graduated from school until they retire.
Thirdly, perfect and strict test system is used for from controlling raw materials to finished products.
Q3: Do we attend any exhibition in China and other countries?
A: Yes, we have attended China Import and Export Fair (Canton Fair) in April and October since 1986 and will continue, also attend Shanghai International Hardware Show in March and October Every year and international exhibitions in other countries as well. If you are interested in manual chain hoist, warmly welcome you to visit our booths during exhibition in China or overseas.
Q4: How about our after-sales services?
A: As for after-sales services, our products seldom have any problem when end customers use them, so there are very few complaints. Anyway, we always help customers solve problem at the earliest time.
