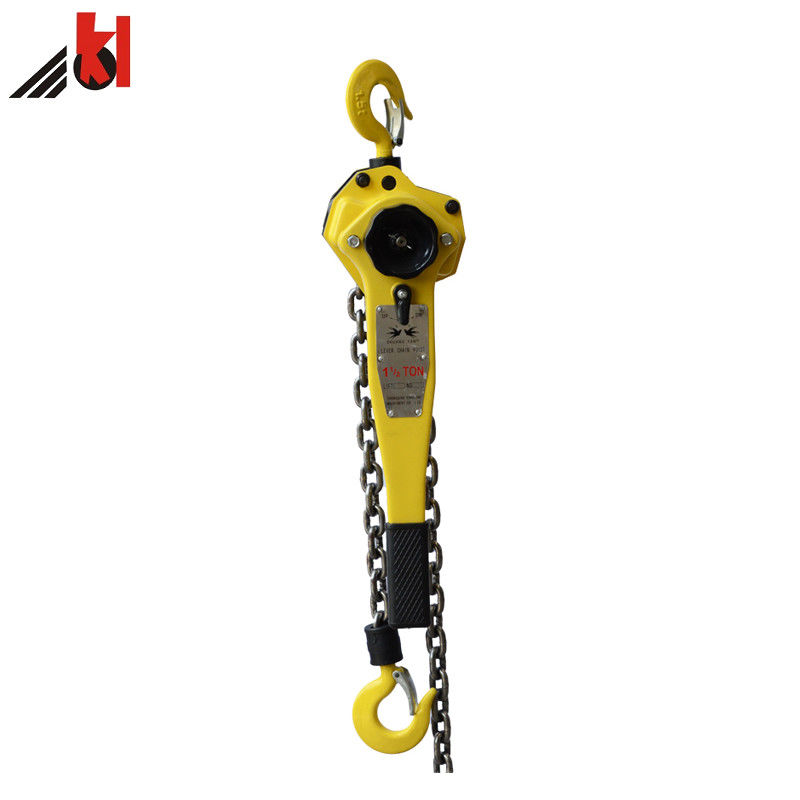

1.5 Ton 1.5m Manual Hand Lever Chain Hoists Block

1.5 Ton 1.5m Manual Hand Lever Chain Hoists Block

  • 1.5 Ton 1.5m Manual Hand Lever Chain Hoists Block
1.5 Ton 1.5m Manual Hand Lever Chain Hoists Block
Product Details:
Place of Origin: Chongqing, China
Brand Name: KingLong
Certification: ISO 9001, CE
Model Number: HSH B
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs mixed models
Price: US$40 - US$50/ piece
Packaging Details: carton box
Delivery Time: 20 days
Supply Ability: 20000 pieces/ month
Contact Now
Detailed Product Description
Application: Lifting Goods Control Method: Manual
Capacity: 1.5 Ton Lift Height: 1.5 M
Sling Type: Loading Chain Load Chain: Grade 80
Hooks: Forged Main Color: Yellow
Chain Color: Polish
High Light:

1.5 Ton Lever Chain Hoists Block

,

1.5 m Lever Chain Hoists Block

,

Hand Lever Chain Hoists Block

Very Hot Saled Model!



You need a profeesional lever block!!





Production Description:



Series HSH B Lever Hoist is much different from traditional Series HSH in the inner gear design. The lifting chain can be manually adjusted under no-load conditions, easily operating and high efficiency, which is capable of being widely applied in ship building, power plants, transport, construction-sites, mines, installing machines ,lifting goods. It is used widely in the narrow places, the open air and overhead places for pulling and stretching work at any angle.





Specification:



Model   HSH B-0.25 HSH B-0.75 HSH B-1.5
Capacity Ton 0.75 1.5 3
Lift height m 1.5 1.5 1.5
Net weight Kg 7 11 16
Lever length mm 290 388 388
Diameter of load chain mm 6 7.1 7.1
No. of load chain   1 1 2
Chain pull to lift full load N 200 210 310
Test load Ton 1 2 4
Min. distance between hooks mm 325 380 485







Products Details:



  •  1.5 ton * 1.5 m
  •  Color range: yellow/ orange/ red/ gray/ green/ blue/ black
  •  Load chain surface treatment range: polish/ black/ galvanized/ gold
  •  Capacity range: 0.25 ton/ 0.75 ton/ 1.5 ton
  •  Load chain grade 80

1.5 Ton 1.5m Manual Hand Lever Chain Hoists Block 0





Company Information:



The former Chongqing Chain Block factory, with more than 40 years history of manual hoist production, is now Chongqing Kinglong Machinery Co.,LTD, located in Chongqing, China. The company occupies an area of 27,000 square meters, among which the workshop has 14,000 square meters, staying on the road side with a distance of 3km from Chongqing West Railway Station and around 28km from Chonqging port. Both land and water transportation are convenient.



With experiences on producing manual hoists for more than 40 years, we have possessed perfect testing devices and the advanced equipment, including seven computer-controlled lines for high strength chains imported from Germany and Italy, and other automatic and semiautomatic digital controlled machines. Our main items are various models of chain blocks, lever blocks, trolley and high strength chains as well as chain assembly. As one of the biggest professional manufacturers of china blocks in China, our present production for chain blocks has reached 250,000 sets and high strength chains 1,250,000 meters in a year.



Our own brands "SHAN CHENG" "Shuangyan" for chain block, lever block and trolley are very popular in domestic and overseas because of their high quality.



The principle of Chongqing Kinglong Machinery Co.,LTD is dedicated to provide the first-class products and satisfactory services after sales.



1.5 Ton 1.5m Manual Hand Lever Chain Hoists Block 1





FAQ:



Q1: Why do our customers trust on us?

A: Most of our customers have cooperated with us for at least from 10 to 25 years. Why cooperated for so long time? Of course, because our customers trust on our products and services, and we always try our best to help them with what they want from China.



Q2: How do we control material quality and products quality?

A: Firstly, we have advanced equipment, such as 77 lines of computer-controlled automobile bending and welding machines for load chain and various kinds of test machines.

Secondly, we own experienced and skilled workers most of who have served in our factory since they graduated from school until they retired.

Thirdly, perfect and strict test system is used for from controlling raw material to finished products.



Q3: Do we attend any exhibition in China and countries?

A: Yes, we have attended China Import and Export Fair (Canton Fair) in April and October since 1986 and will continue, also attend Shanghai international exhibition in other countries as well. If you are interested in manual chain hoist, warmly welcome you to visit our booth during exhibition in China or Overseas.



Q4: How about our after-sale service?

A: As for after-sale service, our product seldom have any problem when end customers use them, so there are very few complaints. Anyway, we always help customer solve problem at the earliest time.



Q5: How to contact us for product techniques and placing orders?

A: Please contact us at the trade manager for instant messages or issue an Alibaba inquiry for supplier’s email, skype, wechat and whatsapp for further contact. We will reply you at the first time.
