Place of Origin: | Chongqing, China (Mainland) |
Brand Name: | Shuangyan |
Certification: | CE, GS, ISO |
Model Number: | HSZ-K |
Minimum Order Quantity: | 100pcs mixed models |
---|---|
Price: | Negotiable |
Packaging Details: | Polybag, plywood, carton box and pallet |
Delivery Time: | 15-30 days |
Payment Terms: | T/T, L/C, Western Union |
Supply Ability: | 25000 Carton/Cartons per Month |
Condition: | New | Usage: | Construction Hoist |
---|---|---|---|
Sling Type: | Load Chain Lifting Chain G80 | Working Load: | 1T, 2T, 3T, 5T, 7.5T, 10T, 15T, 20T, 30T, 50T |
Lift Speed: | Manual, Pulling By Hand | Warranty: | 1 Year |
Product Name: | Vital Type Manual Chain Block | Company Type: | Manufacturer |
History: | >55 Years | Main Products: | Manual Lifting Chain Block, Lever Hoist, Load Chain, Beam Trolley, Spare Parts |
Spare Parts Self-produced: | Hooks, Plates, Chains, Covers, Shaft, Etc. |
PRODUCT: VITAL TYPE MANUAL LIFTING CHAIN BLOCK
SPECIFICATION:
MODEL | HSZ-K0.5 | HSZ-K1 | HSZ-K1.5 | HSZ-K2 | HSZ-K3 | HSZ-K5 | HSZ-K10 | HSZ-K15 | HSZ-K20 | |
CAPACITY | TON | 0.5 | 1 | 1.5 | 2 | 3 | 5 | 10 | 15 | 20 |
LIFTING HEIGHT | M | 2.5 | 2.5 | 2.5 | 2.5 | 3 | 3 | 3 | 3 | 3 |
TEST LOAD | TON | 0.63 | 1.25 | 2.0 | 2.5 | 4 | 6.3 | 12.5 | 20 | 25 |
CHAIN PULL TO LIFT FULL LOAD | N | 260 | 323 | 356 | 390 | 370 | 410 | 436 | 460 | 440 |
DIAMETER OF LOAD CHAIN | MM | 5 | 6 | 7.1 | 8 | 7.1 | 9 | 10 | 10 | 10 |
NO. OF LOAD CHAIN | 1 | 1 | 1 | 1 | 2 | 2 | 4 | 6 | 8 | |
DIMENSIONS | A | 138 | 156 | 184 | 198 | 230 | 285 | 383 | 435 | 680 |
B | 128 | 144 | 153.5 | 162.5 | 153.5 | 184 | 184 | 184 | 229 | |
C | 310 | 370 | 400 | 410 | 530 | 670 | 750 | 1000 | 1040 | |
D | 29 | 30 | 33 | 33 | 47 | 50 | 62 | 80 |
80 |
|
NET WEIGHT | KGS | 7.5 | 10.2 | 15 | 16 | 21.5 | 36 | 70 | 117 |
162 |
EXTRA WEIGHT PER METER OF EXTRA LIFT |
KGS | 1.4 | 1.7 | 1.9 | 2.2 | 3 | 4.4 | 9.4 | 13.5 | 18.6 |

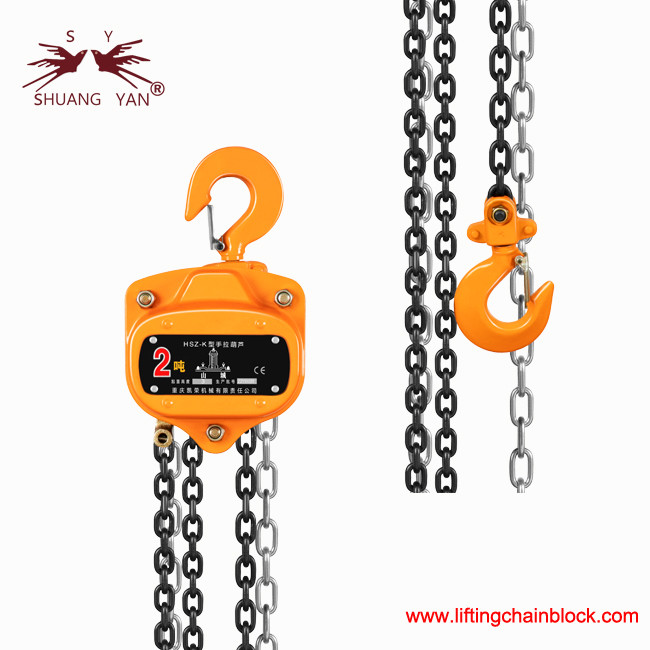

VITAL TYPE LIFTING CHAIN BLOCK PICTURES:
Matte black Color:
Certificates: CE, GS, ISO
How we control quality?
A. Perfect craftsmanship.
B. Products 100% tested before shipment.
C. Chain machines imported from Germany and Italy, and chain quality complied to and over industrial standard.
D. Skilled workers, mature techniques, on-time delivery and researched and developed team.
Customization:
A. Nameplate
B. Lable
C. Carton/Shipping mark
D. Bar Code
E. Logo on product
Etc.
