Single Sheave Wire Rope Pulley Hook Type Lifting Pulley Block and Tackle Pulley

Single Sheave Wire Rope Pulley Hook Type Lifting Pulley Block and Tackle Pulley

  • Single Sheave Wire Rope Pulley Hook Type Lifting Pulley Block and Tackle Pulley
  • Single Sheave Wire Rope Pulley Hook Type Lifting Pulley Block and Tackle Pulley
  • Single Sheave Wire Rope Pulley Hook Type Lifting Pulley Block and Tackle Pulley
Single Sheave Wire Rope Pulley Hook Type Lifting Pulley Block and Tackle Pulley
Product Details:
Place of Origin: Chongqing, China (Mainland)
Brand Name: Shuangyan
Payment & Shipping Terms:
Minimum Order Quantity: 300pcs with mixed models
Price: Negotiable
Packaging Details: Polybag, Carton Box and Pallet
Delivery Time: 15 days
Payment Terms: T/T, L/C
Supply Ability: 20000 Set/Sets per Month
Contact Now
Detailed Product Description
Product Name: Single Sheave Pulley Hook Type Lifting Pulley Block And Tackle Pulley Type: Wire Rope
Material: Stainless Steel, Stainess Steel 45# Color: Red Or Customized
Usage: Workshop, Mining, Farming, Wharf, Dock, Warehouse Capacity: 20,000 Sets
Key Words: Single Sheave Pulley, Steel Pulley, Block And Tackle Pulley Port: Chongqing, Shanghai, Ningbo, Qingdao Port
High Light:

block and tackle pulley

,

double pulley block

Single Sheave Wire Rope Pulley Hook Type Lifting Pulley Block and Tackle Pulley



Product Features:



1,Hooks: die forged with premium alloy steel, 3 times of safety factor
2,Pulley: cast iron pulley, cast steel pulley, hot rolled pulley
3,Pulley core: complex Wear-resistant copper sleeve, pure copper sleeve, ball bearing, needle roller bearing
4,Size customization is acceptable



PARAMETERS for Single Sheave Pulley Block Hook Type



Single Sheave Wire Rope Pulley Hook Type Lifting Pulley Block and Tackle Pulley 0

WLL(Ton) Test Load (KN) Outside Size(mm) Wire Rope Dismeter Range (mm) Dimensions of Ring Cavity(mm) Weight(kg)
H B Lmax D 0
0.32 5.12 230 90 48 4.4~4.7 28 ≦20 1.1
0.5 8 260 98 54 6.2~7.7 31.5 ≦22 1.61
1 16 318 116 63 7.7~11 37.5 ≦27 2.82
2 32 405 152 79 11~14 45 ≦32 5.48
3.2 51.2 470 176 90 12.5~15.5 50 ≦37 8.8
5 80 570 212 105 15.5~18.5 60 ≦42 14.2
8 128 730 280 125 20~23 75 ≦56 31
10 160 810 316 144 23~24.5 85 ≦61 40
16 224 1030 406 169 28~31 106 ≦81 95
20 280 1165 460 180 31~35 118 ≦90 130
32 448 1505 573 240 35~38 140 ≦106 290
50 800 1630 645 345 44~48 165 ≦118 570





Product Picture:

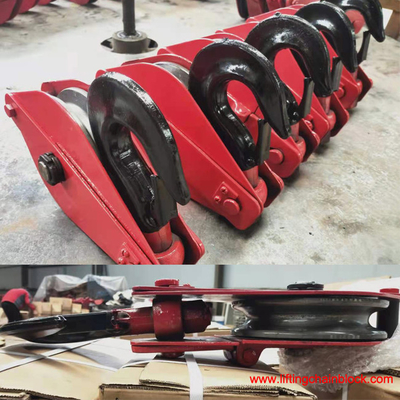

Single Sheave Wire Rope Pulley Hook Type Lifting Pulley Block and Tackle Pulley 1

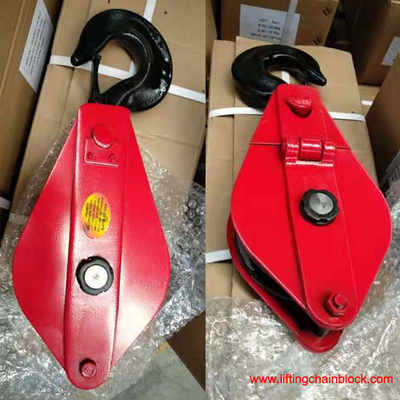

Single Sheave Wire Rope Pulley Hook Type Lifting Pulley Block and Tackle Pulley 2

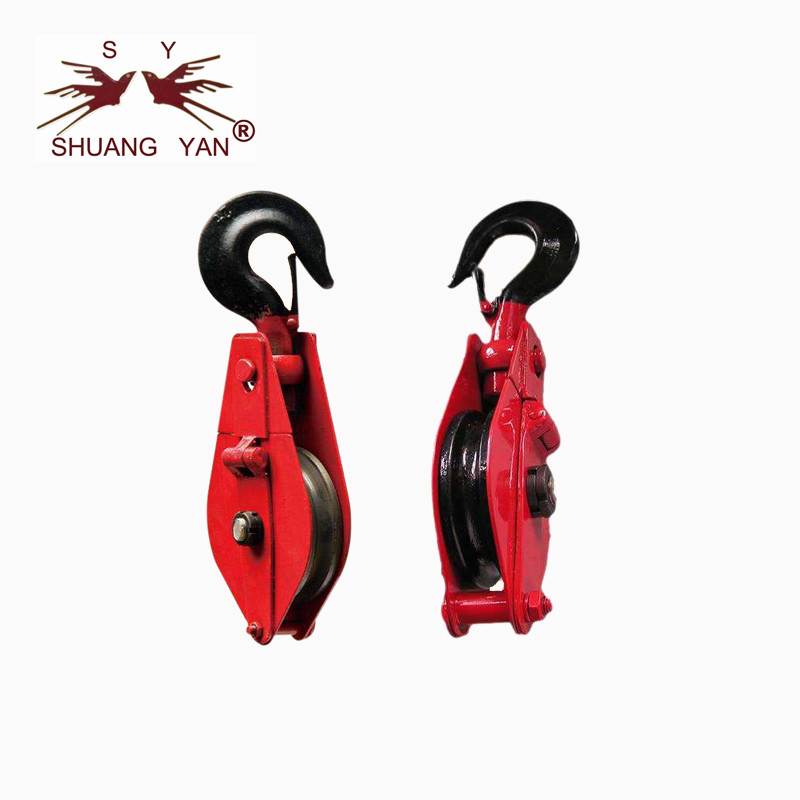

Single Sheave Wire Rope Pulley Hook Type Lifting Pulley Block and Tackle Pulley 3



Packing Pictures:

Single Sheave Wire Rope Pulley Hook Type Lifting Pulley Block and Tackle Pulley 4



Single Sheave Wire Rope Pulley Hook Type Lifting Pulley Block and Tackle Pulley 5



Application Pictures:



Single Sheave Wire Rope Pulley Hook Type Lifting Pulley Block and Tackle Pulley 6



FACTORY INTRODUCTION:



The former Chongqing Chain Block factory, with more than 40 years history of manual hoist production, is now Chongqing Kinglong Machinery Co.,LTD, located in Chongqing, China. The company occupies an area of 27,000 square meters, among which the workshop has 14,000 square meters, staying on the road side with a distance of 3km from Chongqing East  Railway Station, 10km from jiulong port, and both land and water transportation is convenient.



With experiences on producing manual hoists for more than 40 years, we have possessed perfect testing devices and the advanced equipments, including seven computer-controlled lines for high strength chains imported from Germany and Italy, and other automatic and semiautomatic digital controlled machines. Our main items are various models of chain blocks, lever blocks, trolley and high strength chains as well as chain assembly. As one of the biggest professional manufacturers of china blocks in China, our present production for chain blocks has reached 200,000 sets and high strength chains 1,000,000 meters in a year.





MAIN PRODUCTS:



CHAIN BLOCK, LEVER CHAIN HOIST, TROLLEY, ELECTRIC CHAIN HOIST, ELECTRIC WINCH, MINI LIFTING DEVICE, CARRYING TANKS, ELECTRIC HOIST WIRE ROPE, SPRING BALANCER, HAND WINCH, LIFTING CLAMPS, FLAT WEBBING SLING, CARGO LASHING/RATCHET TIE DOWN/RATCHET STRAPS, ROUNG SLING, JACK, POWER PULLER, BEAM CLAMP, DRUM CLAMPS, PULLEY BLOCK, HAND PALLET TRUCK, WIRE ROPE PULLING HOIST and HIGH STRENGTH CHAINS.





Single Sheave Wire Rope Pulley Hook Type Lifting Pulley Block and Tackle Pulley 7
