| Place of Origin: | Chongqing, China (Mainland) |
| Brand Name: | Shuangyan |
| Certification: | CE, GS, ISO |
| Model Number: | HSHB |
| Minimum Order Quantity: | 100pcs mixed models |
|---|---|
| Price: | Negotiable |
| Delivery Time: | 15 days |
| Product Name: | Portable Hand Lever Hand Chain Hoist | Usage: | Construction Hoist |
|---|---|---|---|
| Condition: | New | Power Source: | Hand Chain |
| Sling Type: | Load Lifting Chain G80 | Maximum Lifting Weight: | 1.5t |
| Maximum Lifting Height: | 1.5M Or 3M | Lift Speed: | Manual |
| Application: | Workshop, Mining, Farming, Wharf, Dock, Warehouse | Function: | Load Lifting |
| Color: | Yellow, Orange, Etc | Load Chain Material: | 20Mn2 |
| Load Chain Surface Treatment: | Black | Capacity: | 20,000 Sets |
| Brand: | Neutral Or Shuangyan | Warranty: | 1 Year |
| Single Gross Weight: | 11.0 Kg | Package Type: | Polybag, Carton Box And/or Pallet |
| Highlight: | lever block chain hoist,chain pulley block |
||
The HSHB Lever Hand Chain Hoist/Hand Lifting Equpment is completely different from traditional HSH series hoist in the gear design. The lifting chain can be adjusted freely without any load under it, resulting in easily operation and largily improve the efficiency. It is multi-function and high efficiency, widely applying to equipment installation and goods loading in differenct places like shipyard, power plant, transportation, construction, mining and farming etc, especially its unique feature can be shown when used in narrow work places, open air and overhead places.
2. Specifications
| Model | HSHB-0.75 | HSHB-1.5 |
| capacity(ton) | 0.75 | 1.5 |
| Test Load | 1 | 2 |
| Lifting Hight(m) | 1.5 | 1.5 |
| No. of load chain | 1 | 1 |
| Diameter of load chain(mm) | 6 | 7.1 |
| Min. distance between hooks(mm) | 325 | 380 |
Remark: capacity 0.75,1.5 Ton and longer chain length can be customized

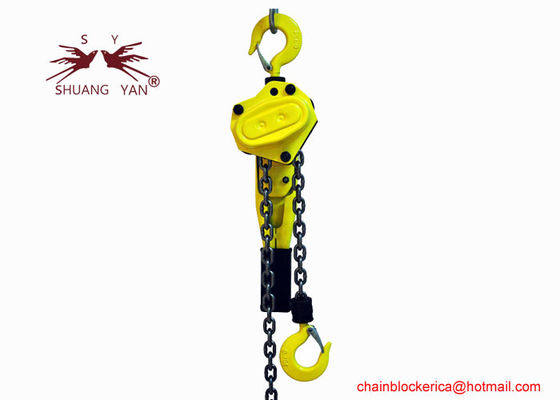

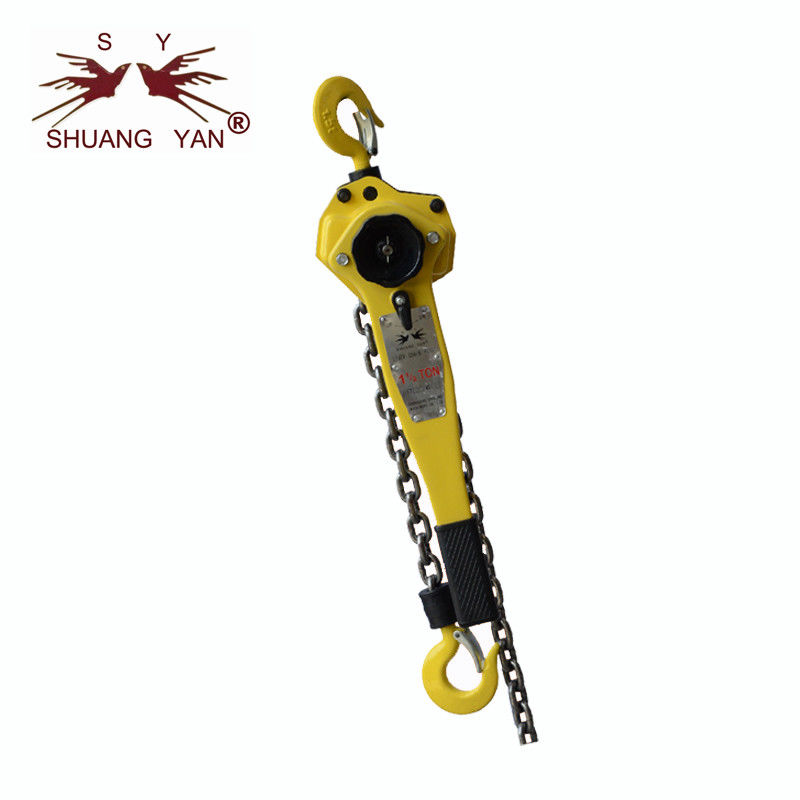

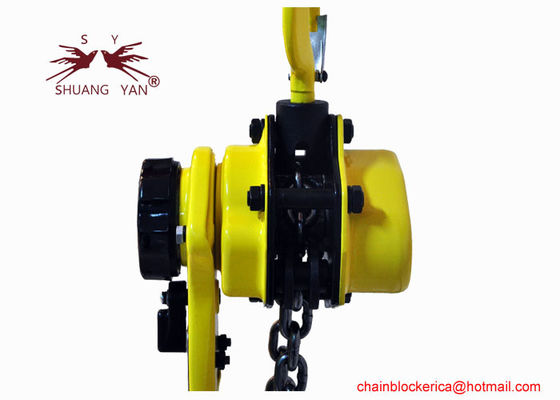

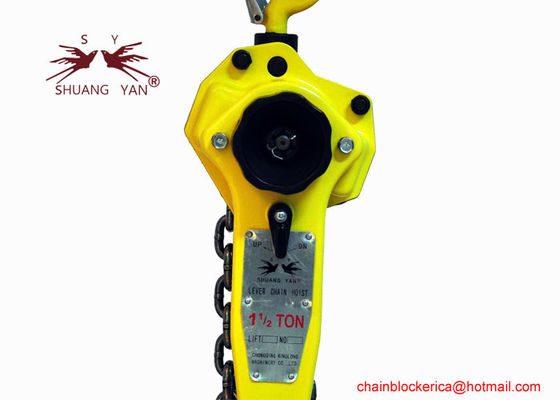

3. Product Pictures
4.Our Advantages
Production Advantage:
Professional chain block manufacturer
Our factory occupies an area of 27,000 square meters, among which the workshop has 14,000 square meters. Production ability for chain blocks has reached 250,000 sets and high strength chains 1,250,000 meters per year.
Equipment Advantage:
Possess perfect testing devices and the advanced equipment, including seven computer-controlled lines for high strength chains imported from Germany and Italy, and other automatic and semiautomatic digital controlled machines
Quality Advantage:
ISO system for factory and perfect testing machines for chain, semi-finished products and finished products, with qualified quality controllers in production lines, and 100% quality guaranteed.
Brand Advantage:
Domestic and international famous brands “Shancheng” and “Shuangyan” for 40 years
Service Advantage:
Product diversity, Customer satisfactory First, Quality No. 1, Service No. 1.
5. Factory Introduction
The former Chongqing Chain Block factory, with more than 40 years history of manual hoist production, is now Chongqing Kinglong Machinery Co.,LTD, located in Chongqing, China. The company occupies an area of 27,000 square meters, among which the workshop has 14,000 square meters, staying on the road side with a distance of 3km from Chongqing East Railway Station, 10km from jiulong port, and both land and water transportation is convenient.
With experiences on producing manual hoists for more than 40 years, we have possessed perfect testing devices and the advanced equipments, including seven computer-controlled lines for high strength chains imported from Germany and Italy, and other automatic and semiautomatic digital controlled machines. Our main items are various models of chain blocks, lever blocks, trolley and high strength chains as well as chain assembly. As one of the biggest professional manufacturers of china blocks in China, our present production for chain blocks has reached 200,000 sets and high strength chains 1,000,000 meters in a year.
Our own brands "SHAN CHENG" "Shuangyan" for chain block, lever block and trolley are very popular in domestic and overseas because of their high quality.
The principle of Chongqing Kinglong Machinery Co.,LTD is dedicated to provide the first-class products and satisfactory services after sales.
6. Factory/Exhibition/Certificates
7. Pakaging
8. FAQ:
Q1: Why do our customers trust on us?
A: Most of our customers have cooperated with us for at least from 10 to 25 years. Why have we cooperated for so long time? Of cause, because our customers trust on our products and services, and we give them best products, most favorable prices, and best services, and we always try our best to help them with what they want from China.
Q2: How do we control material quality and products quality?
A: Firstly, we have advanced equipment, such as 7 lines of computer-controlled automobile chain bending and welding machines and various kinds of test machines.
Secondly, we own experienced and skilled workers most of who have served in our factory since they graduated from school until they retire.
Thirdly, perfect and strict test system is used for from controlling raw materials to finished products.
Q3: Do we attend any exhibition in China and other countries?
A: Yes, we have attended China Import and Export Fair (Canton Fair) in April and October since 1986 and will continue, also attend Shanghai International Hardware Show in March and October Every year and international exhibitions in other countries as well. If you are interested in manual chain hoist, warmly welcome you to visit our booths during exhibition in China or overseas.
Q4: How about our after-sales services?
A: As for after-sales services, our products seldom have any problem when end customers use them, so there are very few complaints. Anyway, we always help customers solve problem at the earliest time.
Q5: How to contact us for product techniques and placing orders?
A: Please contact us at the Whatsapp or email to me. We will reply you at the first time.
